Features Overview
Feature 1

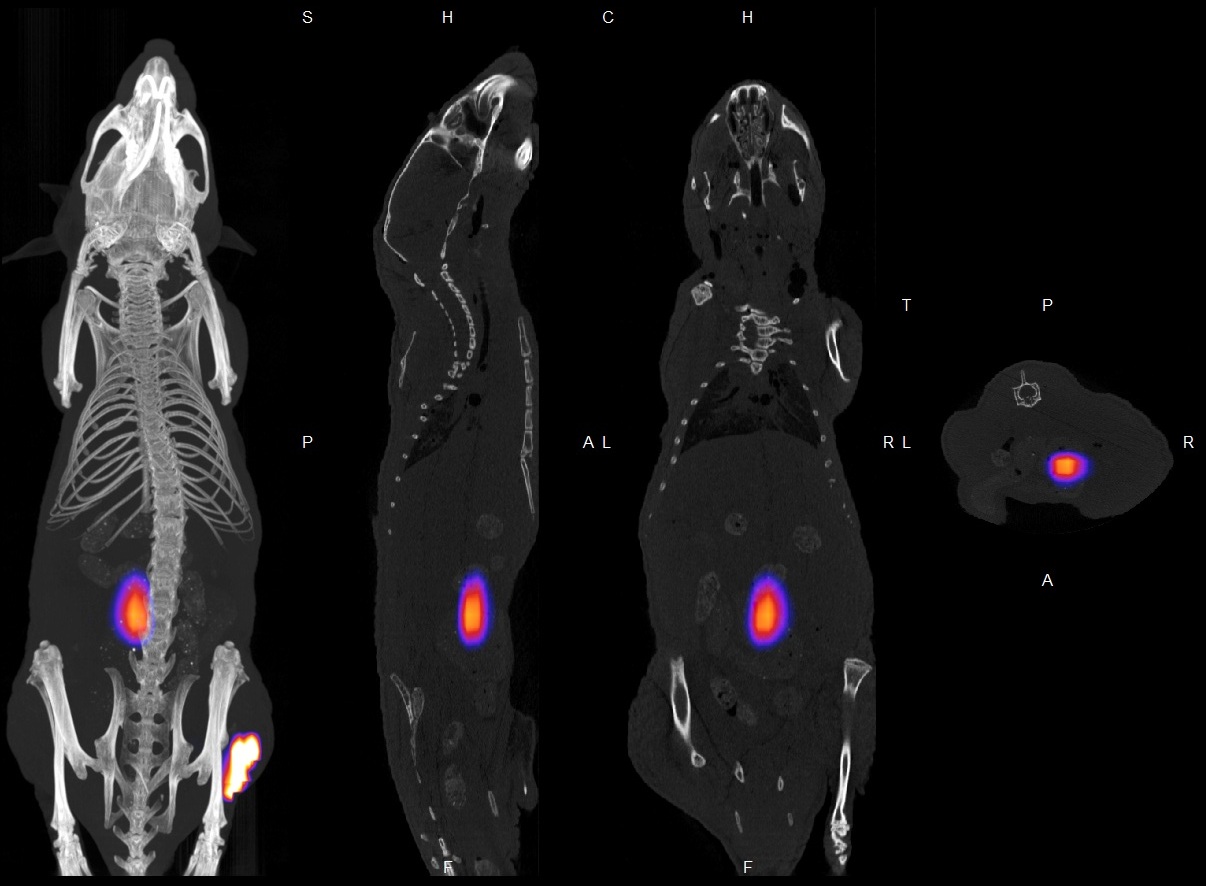

The InSyTe FLECT/CT is a dual-modality, preclinical molecular imaging platform that combines complete angle fluorescence tomography with X-ray CT. Fluorescence data is acquired in two modes; 2D reflectance or in 360° (complete angle), acquiring optical images with InSyTe FLECT/CT. Optimized for detection of near infrared (NIR) fluorescence to enable deep tissue imaging capability in vivo, the InSyTe FLECT/CT is compatible with a wide variety of commercially available NIR-labelled probes and fluorescent dyes, allowing for investigation of a broad spectrum of research areas. Combined with the inline X-ray CT subsystem, the InSyTe FLECT/CT performs noninvasive, radioisotope-free, 3D tomographic imaging with anatomical reference and is easily installed in a standard research laboratory or preclinical imaging facility.
Features
| 2D | 3D |
|---|---|
| Fast acquisition for screening | 80 mm FOV |
| Fluorescence reflectance | Complete angle fluorescence tomography |
| X-ray radiograph | X-ray CT for anatomical reference |
FLECT and CT acquisition on the same gantry
4 standard lasers and 5 NIR fluorescence emission filters
Proprietary 3D fluorescence reconstruction software and dedicated reconstruction workstation
DICOM image output format facilitates co-registration with other imaging modalities (i.e. PET, SPECT, MRI, etc.)
Gas anesthesia inlet and outlet ports
Specifications
| Dimensions | 84 cm x 135 cm x 65 cm |
|---|---|
| Fluorescence reflectance | Complete angle fluorescence tomography |
| Imaging Modality | Optical Imaging (complete angle tomography, 2D reflectance)
MicroCT Imaging (complete angle tomography, 2D radiograph) |
| Weight | 165 kg |
| Optical Imaging Classification | Fluorescence Imaging |
| Product Brand Name | InSyTe FLECT/CT |
